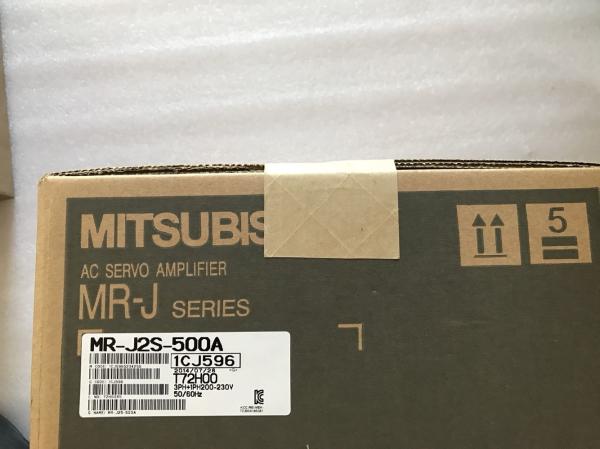

Mitsubishi Electric Serial Servo Controller MR-J2S-500A Industrial 3-Phase Drive 500A 5KW

Specifications

• Manufacturer : Mitsubishi
• Product No. : MR-J2S-500A
• Product type : Servo Amplifier Module
• Phase : 3 Control function : Servo Control
• Supply voltage : 200 V ac
• Current rating : 500 A
• Minimum operating temperature : 0 °C
• Maximum operating temperature : +55 °C
• Permissible frequency fluctuation Within : 5%
• Dynamic brake : Built-in
• Shipping weight : 10Kg

Corresponding servo motor type name

• HC-SFS502
• HC-LFS302
• HC-RFS353
• HC-RFS503
• HA-LFS502
• HC-SFS502B
• HC-LFS302B
• HC-RFS353B
• HC-RFS503B
• HC-UFS352
• HC-UFS352B
• HC-UFS502
• HC-UFS502B

Introduction

The Mitsubishi MELSERVO-J2-Super series general-purpose AC servo is based on the MELSERVO-J2series and has further higher performance and higher functions.It is connected with a servo system controller or similar device via a serial bus (SSCNET) and the servoamplifier reads position data directly to perform operation.Data from a command unit controls the speed and rotation direction of the servo motor and executesprecision positioning.A torque limit is imposed on the servo amplifier by the clamp circuit to protect the power transistor in themain circuit from overcurrent due to sudden acceleration/deceleration or overload. The torque limit valuecan be changed to any value with an external analog input or the parameter.As this new series has the RS-232C serial communication function, a MR Configurator (servoconfiguration software)-installed personal computer or the like can be used to perform parameter setting,test operation, status display monitoring, gain adjustment, etc.With real-time auto tuning, you can automatically adjust the servo gains according to the machine.The MELSERVO-J2-Super series servo motor is equipped with an absolute position encoder which hasthe resolution of 131072 pulses/rev to ensure more accurate control as compared to the MELSERVO-J2series. Simply adding a battery to the servo amplifier makes up an absolute position detection system.This makes home position return unnecessary at power-on or alarm occurrence by setting a home positiononce.

MR-J2S Series Industrial Servo Drive

1)The MR-J2S-A series
comes with analogue and digital inputs and is excellent for all single axis applications from positioning over speed to torque control.

2)The MR-J2S-B series
with network bus facility is perfect for precise multiple axis synchronisation solutions. They are designed for SSCNET connection in combination with Mitsubishi A-Motion-Controllers or Q-series Motion Controllers. The motion controllers and servo amplifiers can be linked via SSCNET network.

3)The MR-J2S-CP & MR-J2S-CL
is a totally programmable amplifier that gives an in-expensive complete positioning solution for the smaller power range.

• MDS and MR Series AC Servo Drives
• MDS and FR Series AC Spindle Drives
• FR Series General Purpose Inverters and Braking Modules
• HA / HC / HF / HP / HS Series AC Servo Motors
• SJ Series AC Spindle Motors
• CNC Boards
• Power Supplies

Mitsubishi MR-J2S Series Servo Drive

Nameplate

Model

• All the Mitsubishi Parts are new and original with package.
• Warranty time: 180 or 360 days.

Good Service in WTL:

> Please send your RFQ to get the latest price.

> Normally, we will ship the items in 1-2 weeks after receive the payment.

> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.

> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
