EBMPAPST Cooling Fan Assembly CCC D2D160-BE02-12 For ABB Inverter

Ask Lasest Price
Brand Name :	EBM-PAPST
Model Number :	D2D160-BE02-12

Add to Cart

Product Details
Company Profile

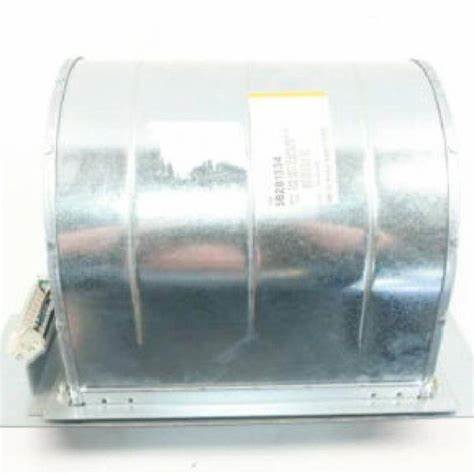

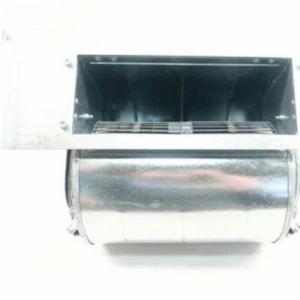

EBMPAPST Cooling Fan Assembly CCC D2D160-BE02-12 For ABB Inverter

EBMPAPST Cooling FAN D2D160-BE02-12 for ABB inverter Centrifugal Cooling Fan Assembly

Technical description

Weight 10.9 kg

Fan size 160mm

Rotor surface Rotor open, painted black

Impeller material Sheet steel, hot-dip galvanized

Housing material Sheet steel, hot-dip galvanized

Guard grille material Steel, galvanized and coated with white aluminum plastic (RAL 9006)

Motor suspension Motor vibration-damped on both sides

Direction of rotation Counter clockwise, viewed toward rotor

Degree of protection IP00

Insulation class "F"

Moisture (F) /

Environmental (H)

protection class

F2-1

Installation position Any

Condensation

drainage holes

None, open rotor

Mode S1

Motor bearing Ball bearing

Touch current

according to IEC

60990 (measuring

circuit Fig. 4, TN

system)

< 0.75mA

Electrical hookup With plug

Motor protection Thermal overload protector (TOP) with

basic insulation

with cable Axial

Protection class I (with customer connection of protective

earth)

Conformity with

standards

EN 60335-1

Approval CCC; CSA C22.2 No. 100; UL 1004-1

CAUTION

Voltage

The device is a built-in component and has no disconnectingswitch.

→ Connect the device to a suitable tripping unit.

→ Only connect the device to circuits that can be switchedoff with an all-pole disconnection switch.

→ When working on the device, secure the system/ machine in which the device is installed so as to prevent it from being switched back on.

The motors are equipped with thermal overload protectors to protect the devices. Check to make sure that the thermal overload protector is correctly connected before each operation. Failure to connect the thermal overload protector correctly will invalidate your warranty claim.

Current ABB Code New descriptions Previous type New type code

10030820 LONG-LIFE FAN, CENTRIFUGAL D4E225-CC01-39 D4E225-CC01-56

10030668 LONG-LIFE FAN, CENTRIFUGAL D4E225-CC07-37 D4E225-CC07-37

68870674 LONG-LIFE FAN, CENTRIFUGAL G2E140-PI32-43 G2E140-PI32-43

10032971 LONG-LIFE FAN, CENTRIFUGAL G2E140-PI32-10 G2E140-PI32-10

68502926 LONG-LIFE FAN, RADIAL R2E225-BD40-21 R2E225-BD40-65

3AXD50000025440 LONG-LIFE FAN, RADIAL R3G190-RC05-03 R3G190-RC05-34

3AXD50000000592 LONG-LIFE FAN, RADIAL R3G225-RD05-03 R3G225-RH17-23

10005019 LONG-LIFE FAN, AXIAL W2E143-AA09-01 W2E143-AA09-93

59023373 LONG-LIFE FAN, AXIAL W2E143-AA15-01 W2E143-AA15-94

10012171 LONG-LIFE FAN, AXIAL W2E200-HH38-06 W2E200-HH38-06

10032300 LONG-LIFE FAN, AXIAL W2E200-HH86-14 W2E200-HH86-14

3AUA0000125508 LONG-LIFE FAN, AXIAL W2E250-HL06-21 W2E250-HL06-21

3AXD50000025970 LONG-LIFE FAN, AXIAL W2E250-HJ32-01 W2E250-JH32-18

3AXD50000000514 LONG-LIFE FAN, RADIAL R2E225-RA92-17 R2E225-RA92-17

3AXD50000004019 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-16 D2D160-CE02-16

3AXD50000042302 LONG-LIFE FAN, CENTRIFUGAL RF3D-146-180 K506 DSF-2326 D3G146-AB06-10

64337891 LONG-LIFE FAN, CENTRIFUGAL D2E146-AP47-79 D2E146-AZ03-F9

3AUA0000059428 LONG-LIFE FAN, CENTRIFUGAL D3G146-AH50-16 D3G146-AH50-16

68281334 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-12 D2D160-CE02-12

64650424 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-11 D2D160-CE02-11

3AUA0000083491 LONG-LIFE FAN, AXIAL 2410ML-05W-B69-EQ3 2410ML-05W-B69-EQB

3AUA0000088115 LONG-LIFE FAN, AXIAL 2410ML-05W-B79-EQ2 2410ML-05W-B79-EQ4

3AXD50000003619 LONG-LIFE FAN, AXIAL MPN 06025MA-24Q-FT-02 MPN 06025MA-24Q-FT-02

3AUA0000085511 LONG-LIFE FAN, AXIAL D1751M24B8CP332 D1751M24B8CP332

3AUA0000077628 LONG-LIFE FAN, AXIAL D1751S24B8CP353 D1751S24B8CP353

3AUA0000123668 LONG-LIFE FAN, AXIAL KIT 06025SA-24R-BU-D1 06025SA-24R-BU-D2

3AUA0000123669 LONG-LIFE FAN, AXIAL KIT 3115RL-05W-B66-EQ2 3115RL-05W-B66-EQ5

3AUA0000123670 LONG-LIFE FAN, AXIAL KIT 3615RL-05W-B46-EQ1 3615RL-05W-B46-EQ1

3AUA0000123674 LONG-LIFE FAN, AXIAL KIT 3615RL-05W-B76-EQ2 3615RL-05W-B76-EQ3

3AUA0000123676 LONG-LIFE FAN, AXIAL KIT 4715VL-05W-B76-EQ2 4715VL-05W-B76-EQ3

68625114 LONG-LIFE FAN, RADIAL R2E190RA5016 R2E190-RA50-90

3AXD50000036608 LONG-LIFE FAN, RADIAL KIT R8I CONTROLLED FAN 175 MM FAN ASSEMBLY

3AXD50000028422 LONG-LIFE FAN, AXIAL R8I PCB FAN PCB FAN

3AXD50000179343 LONG-LIFE FAN, RADIAL KIT R4E355-RM03-05 R3G355-RB03-10

3AXD50000422975 LONG-LIFE FAN, CENTRIFUGAL KIT R2E225-RA92-17 R3G225-RE07-25
