Ge Fanuc IC660EBD025 , Electronics Assembly Block Is Manufactured

Technical Information

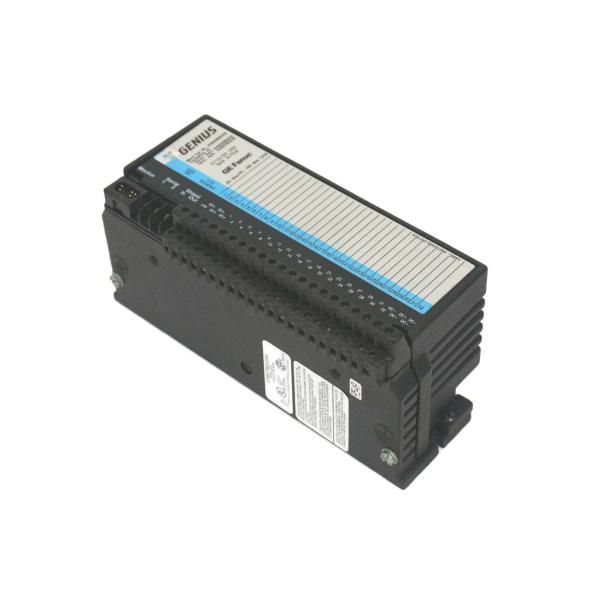

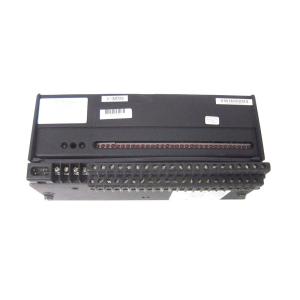

The GE Fanuc IC660EBD025 electronic assembly is an electronic assembly for a 32-circuit sink and source I/O block manufactured by GE Intelligent Platforms/GE Fanuc as a member of the Genius I/O product family. This 32-circuit sink block that the IC660EBD025 electronic assembly is part of has a rating of 5, 12, or 24 Volts DC and it is designed to receive current from the field output devices which are the 32-circuit source blocks rated at 12 to 24 Volts DC.

The Genius I/O block features a block-to-block isolation of 850 Volts with a heat dissipation rating of 11 Watts at a minimum with 8 inputs and it has 18 Watts of maximum heat dissipation with 32 outputs at a current rating of 5 Amps. The block, including the IC660EBD025 electronic assembly has a 1-source operating voltage range of 10 to 30 Volts DC with a power supply rated at 12 or 24 Volts DC or 4.9 to 5.3 Volts DC with a power supply voltage of 5 Volts for sink blocks only.

Other notable specifications of the IC660EBD025 electronic assembly and the entire DC 32-circuit source/sink blocks include a ripple of 10 percent maximum at 12/24 Volts and 1 percent maximum at 5 Volts.

These blocks also have a power source dropout time of 4 milliseconds at 12 Volts and 20 milliseconds at 24 Volts. They also have a required DC power current rating of 300 milliamps maximum and 150 milliamps typical. Generally, these blocks weigh about 4 pounds (1.8 kilograms) and their dimensions are 8.83 x 3.58 x 4.7 inches. Some of the output specifications of the IC660EBD025 electronic assembly include a steady-state output current of 0.5 Amps per circuit at maximum and a block output current of 16 Amps total.

Shenzhen Wisdomlong Technology CO.,LTD Mainly engaged in automation parts, PLCS,DCS,sensors, relays, dirves,encoder, servo drive,soft starter,touch screen,instrument,process control,electric transmission and factory automation aspects of the project design,software programming,technical service and staff training. Our company locats at the central of China,Shenzhen, Guangdong Province. With rapid development, Wisdomlong serves fields of automation in global markets, Our business covers five continents throughout the world with the basic conviction of honest, the international management of customer-centered concept and purpose of bringing convenience to customers. We have confidence to bring our customers more substantial profit with high-quality service and reasonable prices. Choosing us,you will choose a sincere friend and reliable partner. Please feel free to contact us if you are a global manufacturer of high quality brand products who desires to enter the Chinese market or who searches for a Chinese agent.We would like to create a brilliant future with friends in domestic and overseas. All goods sold have one year warranty.

The company with domestic and international numerous well-known brands supplier to build have extremely good relations of cooperation, in Japan, South Korea, southeast Asia, Africa, Europe and the United States, and formed a stable and efficient supply network. The agent and the products are widely used in machinery, equipment manufacturing, electric power, metallurgy, petrochemical, automobile manufacturing industry, paper making, chemical industry, medicine and aerospace industries.
