    AB 1747-CP3 , SLC 500 Programmer Cable , SLC 5/02, 5/03, 5/04, 5/05

    Ask Lasest Price
    Brand Name : AB
    Model Number : 1747-CP3
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    AB 1747-CP3 , SLC 500 Programmer Cable , SLC 5/02, 5/03, 5/04, 5/05

    AB 1747-CP3 , SLC 500 Programmer Cable , SLC 5/02, 5/03, 5/04, 5/05

    Technical Specifications for 1747-CP3

    ManufacturerRockwell Automation
    BrandAB
    Part Number/Catalog No.1747-CP3
    SeriesSLC 500
    Cable TypeProgrammer Cable
    Length118 inches (3 meters)
    Compatible ProcessorsSLC 5/02, 5/03, 5/04, 5/05
    Backplane Current (5 Volts)800 milliamps
    Operating Temperature32-140 Fahrenheit (0-60 Celsius)
    CableBelden 9463
    Connectors6-Pin Phoenix Connector
    Weight0.37 pounds (168 grams)
    Dimensions5.72 x 1.37 x 5.15 inches
    Operating Temperature0-60 Celsius

    About 1747-CP3

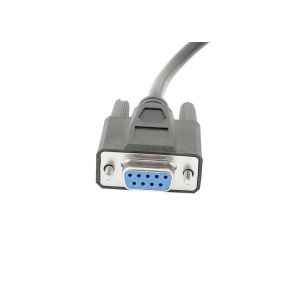

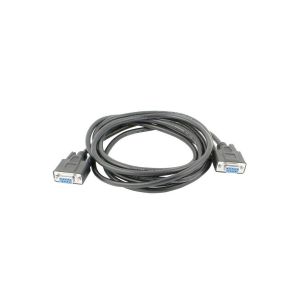

    The AB 1747-CP3 is a programmer cable for the SLC 5/03 and the 5/04 Modular Programmable Controllers. This cable connects 5/03 & 5/04 RS232 Communications Port to the DTE Device (Computer). The AB 1747-CP3 has an internal jumper on each end. The 1747-CP3 also connects the PanelView Series Component Terminal to the SLC and MicroLogix controllers. It is also called the 9-pin D Shell-to-9-pin D Shell Null Modem Cable. The length of this cable is around 3 m (9.8 ft) and it has been tested by several organizations. This cable follows the Council Directive 89/336 / EEC Electromagnetic Compatibility (EMC). This cable also follows some Electromagnetic Compatibility (EMC) standards. The AB 1747-CP3 has passed the EN 50081-2 EMC - Generic Emission Standard, Part 2 - Industrial Environment standard, the EN 50082-2 EMC – Generic Immunity standard, and the Part 2 - Industrial Environment standard. To avoid damage to the ESD on a computer, always connect to a properly designed DH-485 device or interface before inserting the USB cable into the computer's USB port.

    The AB 1747-CP3 is intended for use in an industrial environment. It follows the Council Directive 73/23/EEC Low Voltage, Part 2 – Equipment requirements and tests. This cable has met the safety requirements that have been set. Please refer to the Wiring and Installation Guide for Industrial Automation, 1770-IN041. If you experience problems with this cable within the first 24 hours of installation, do not forcefully remove it, as this may cause damage.
