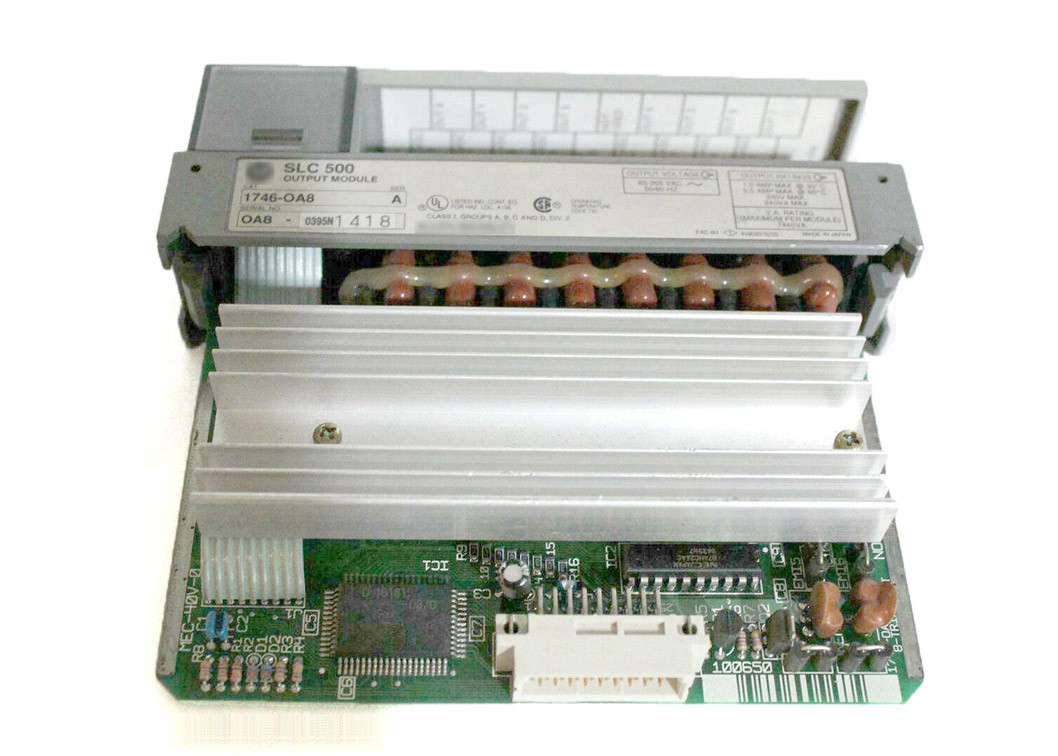

    AB 1746-OA8 , SLC 500 Discrete AC Output Module , 120 / 240 VAC

    Ask Lasest Price
    Brand Name : AB
    Model Number : 1746-OA8
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    AB 1746-OA8 , SLC 500 Discrete AC Output Module , 120 / 240 VAC

    AB 1746-OA8 , SLC 500 Discrete AC Output Module , 120 / 240 VAC

    Technical Specifications for 1746-OA8


    ManufacturerRockwell Automation
    Module TypeDiscrete AC output module
    SeriesSLC 500
    Part Number/Catalog No.1746-OA8
    BrandAB
    No. of groups2
    No. of channels per group4
    Nom Output Voltage120 / 240 VAC
    Output Voltage Range85-264 VAC
    Backplane current consumption185 mA
    ON Signal delay, max. resistive load1 ms
    OFF Signal delay, max. resistive load11 ms
    Continuous current per point1.00 A at 30 °C (86 °F); 0.5 A at 60 °C (140 °F)

    Continuous current per module8.0 A at 30 °C (86 °F); 4.0 A at 60 °C (140 °F)
    On-state voltage drop, max1.5V at 1.0 A
    Surge current per point10 A for 25 ms
    Voltage Range85-265 Volts AC
    Outputs8
    Current/Output at 30 Celsius1 amp
    Current/Output at 60 Celsius0.5 amp
    Backplane Current (5 Volts)185 milliamps
    Current/Module (30 Celsius)8 amps
    ApplicationsGeneral Purpose
    Step Response60 milliseconds in, 2.5 milliseconds out
    UPC10662073521331

    About 1746-OA8

    The AB 1746-OA8 is an SLC 500 AC output module. This module is part of discrete output modules, used to energize electrical loads that operate at an operating voltage range of 85-264 VCA with frequency of 47-63 Hz. The module’s nominal output voltages are 120VAC and 240VAC and occupies a single slot of the 1746 chassis.

    Each channel of the 1746-OA8 delivers a continuous output current of 1.0 A @ 30 °C (86 °F) or 0.50 A @ 60 °C (140 °F) while the maximum continuous output current per module is 8.0 A @ 30 °C (86 °F) and 4.0 A @ 60 °C (140 °F). Additionally, each channel has an ON signal delay of 1 ms for resistive load and maximum OFF delay signal of 11 ms for resistive load as well.

    The 1746-OA8 draws backplane current amounting to 185 mA @ 5VDC with ON state output voltage drop of 1.50V @ 1.0 A. The module’s minimum load current is 10 mA with maximum OFF state leakage output current of 2 mA. The module’s maximum surge current per point is 10 A for 25 ms.

    The 1746-OA8 fits to any available slot of the 1746 chassis except the first slot which is reserve for the SLC 500 processor.

    The 1746-OA8 must be configured using the RSLogix 500 programming software. With the programming software, individual channel operation and parameters may be set. For installation, the module must be attached to the chassis when power is not actively supplied as this module does not support Removal and Insertion Under Power (RIUP).

    The 1746-OA8 has a maximum leakage current of 2mA in its OFF state and the minimum current load on each output point is 10mA. The maximum current on each output point is 1A which falls to 0.5A at 60 °C and the aggregate current on the 1746-OA8 module is 8A but it can fall to 4A at 60 °C. It has a drop voltage of 1.50V at 1A in its OFF state and the module has an output current surge of 10A for 25ms. The 1746-OA8’s factory-designated operational temperature falls between 0 and 60 °C (32 and 140 °F) and it must be used in 5-95% non-condensing relative humidity and stored at a temperature between 40 and 85 °C (-40 and 185 °F). It is built to withstand an operational vibration of 2.5G at 57-2000 Hertz and it can sustain a shock rating of 30G. The 1746-OA8 features NEMA standard ICS 2-230 Noise Immunity and is UL and CSA-certified.
