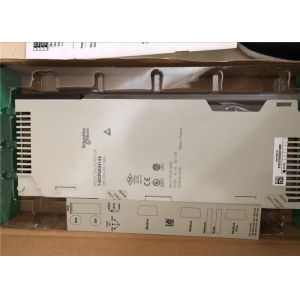

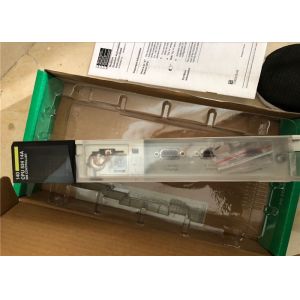

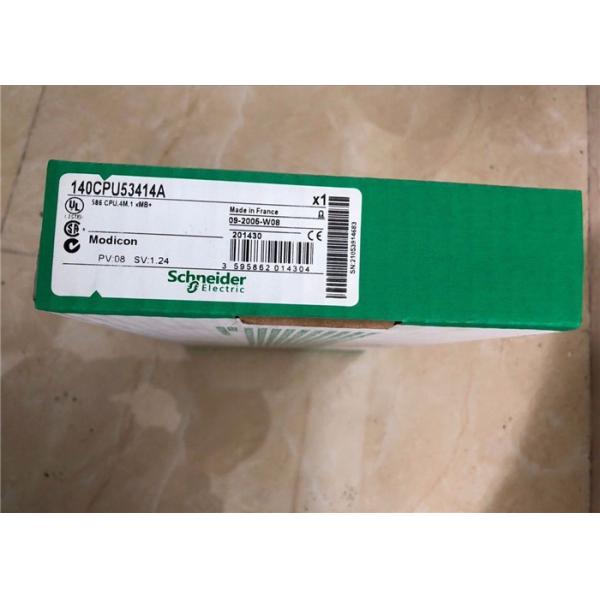

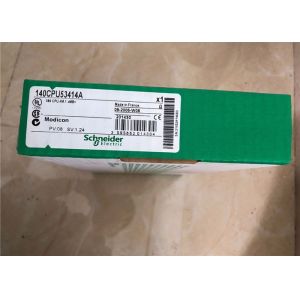

Schneider 140CPU53414A Electronic Interface Module Processor / Controller

Ask Lasest Price
Brand Name :	Schneider
Model Number :	140CPU53414A
Price :	negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100
Delivery Time :	2-3 work days

Add to Cart

Product Details
Company Profile

Schneider 140CPU53414A Electronic Interface Module Processor / Controller

Redundant Power Supply Module Schneider 140CPU53414A Processor/Controller

Specifications
Manufacturer Series	140CPU
Battery Backup	Yes
Maximum Inputs/Outputs	158 (Input), 160 (Output)
Number of I/O	32 (Distributed), 64 (Local), 64 (Remote)
Total Memory Available	2972 (Internal) kB
Number of Outputs	160
Brand	Schneider Electric
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+60°C
Number of Communication Ports	5
For Use With	Modicon Quantum Automation Platform
Mounting Type	Rack Mount
Length	290mm
Number of Inputs	158

Main

RANGE OF PRODUCT	Modicon Quantum automation platform
PRODUCT OR COMPONENT TYPE	Processor
SOFTWARE NAME	Concept ProWORX 32
PROCESSOR NAME	80486
MATHEMATICAL COPROCESSOR	With

Complementary

CLOCK FREQUENCY	100 MHz
MEMORY DESCRIPTION	Internal RAM 2972 kB
EXACT TIME FOR 1 KINSTRUCTION	0.1…0.5 ms LL984
WATCHDOG TIMER	250 ms
CLOCK DRIFT	+/-8 s/day at 32…140 °F (0…60 °C)
I/O WORDS	30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote
I/O WORDS/NETWORK	500 I/500 O distributed
DROPS/NETWORK	63 distributed
NUMBER OF DROPS	31 remote
NUMBER OF NETWORK	2 remote 3 distributed
BATTERY TYPE	Lithium 10 µA 420 µA
BATTERY CAPACITY	1.2 Ah
BATTERY LIFE	10 yr
SWITCH FUNCTION	Key switch
MARKING	CE
BUS CURRENT REQUIREMENT	1250 mA
MODULE FORMAT	Standard
PRODUCT WEIGHT	1.87 lb(US) (0.85 kg)

Environment

PROTECTIVE TREATMENT	Conformal coating Humiseal 1A33
PRODUCT CERTIFICATIONS	CUL FM Class 1 Division 2
STANDARDS	UL 508 CSA C22.2 No 142
RESISTANCE TO ELECTROSTATIC DISCHARGE	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
RESISTANCE TO ELECTROMAGNETIC FIELDS	9.14 V/yd (10 V/m) 80…2000 MHz conforming to IEC 801-3
AMBIENT AIR TEMPERATURE FOR OPERATION	32…140 °F (0…60 °C)
AMBIENT AIR TEMPERATURE FOR STORAGE	-40…185 °F (-40…85 °C)
RELATIVE HUMIDITY	95 % without condensation
OPERATING ALTITUDE	<= 16404.2 ft (5000 m)

Ordering and shipping details

CATEGORY	18150 – QUANTUM CONTROLLERS,HSBY,COMM.
DISCOUNT SCHEDULE	PC21
GTIN	00785901797364
NBR. OF UNITS IN PKG.	1
PACKAGE WEIGHT(LBS)	2.2000000000000002
RETURNABILITY	N
COUNTRY OF ORIGIN	FR

Offer Sustainability

SUSTAINABLE OFFER STATUS	Green Premium product
ROHS (DATE CODE: YYWW)	Compliant – since 1007 – Schneider Electric declaration of conformity Schneider Electric declaration of conformity
REACH	Reference not containing SVHC above the threshold
PRODUCT ENVIRONMENTAL PROFILE	Available
PRODUCT END OF LIFE INSTRUCTIONS	Available

Contractual warranty

WARRANTY PERIOD	18 months

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG-	Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X-	Emerson VE-,KJ-
Honeywell TC-,TK-	GE Modules IC -
Fanuc motor A0-	Yokogawa transmitter EJA-

Contact person: Anna

E-mail: wisdomlongkeji@163.com

Cellphone: +0086-13534205279

Similar Products

140CPU67160
140CPU65160
140CPU65150
140CPU31110
140CPU53414A*
140CPU43412A*

140CPU43412
140CPU43412A
140CPU53414
140CPU53414A
140CPU53414B

140NOE77101
140NOE77111
140CRA21110
140CRA93100
140CRA93200
140CRP93100
140CRP93200

140CPU53414A Available Now - Call 800-691-8511. New, Reman, Exchange, or Repair. See Quantum 140-CPU-534-14A PDF below for product info.

Quantum | 140CPU53414A | Modicon | 140 CPU 534 14A | Processor 586K 4MEG 1xMB+

The following provides information on the specifications of the 140 CPU 311 10, 140 CPU 434 12A, 140 CPU 534 14A, and 140 CPU 534 14B Quantum modules. The 140 CPU 311 10 module is supported only by Unity. The 140 CPU 434 12A, 140 CPU 534 14A, and 140 CPU 534 14B modules are supported by Concept and ProWORX and, via an upgrade of their executive, by Unity. Related Documentation For more information concerning these modules, see the Quantum with Unity Pro Hardware Reference Manual, UNYUSE10010V11X or the Quantum Automation Series Hardware Reference Guide, 840USE10000 (140 CPU 434 12 A, 140 CPU 534 14A, and 140 CPU 534 14B only).

Additional Information
Processor 586K 4MEG 1xMB+

Estimated Shipping Size
Dimensions: 1" x 10" x 4" (4 cm x 25 cm x 10 cm)
Weight: 1 lbs 1 oz (0.49 kg)

The cpu's 140 CPU 534 14 A/ B can be upgraded to be compatible with the Unity Pro software without any hardware modifi cation. This process of migration is achieved by updating the CPU operating system with Unity OS. This update is performed with the aid of the OS-Loader tool included with Unity Pro. The migration of 140 CPU 534 14B processor requires the version of Unity Pro

SHIPPING

The Schneider Electric / Modicon 140-CPU-534-14A is in stock and ready to ship from WTL. Same day shipping is available on most orders before 4 PM Eastern. If you have any questions about the shipping process call 86-13534205279.

CORE EXCHANGE

This product may qualify for our Core Exchange Program. Please contact us for additional information on exchanging your old part.

WARRANTY

Eagle PLC offers a 1 year warranty on all Schneider Electric / Modicon products including the 140-CPU-534-14A.
