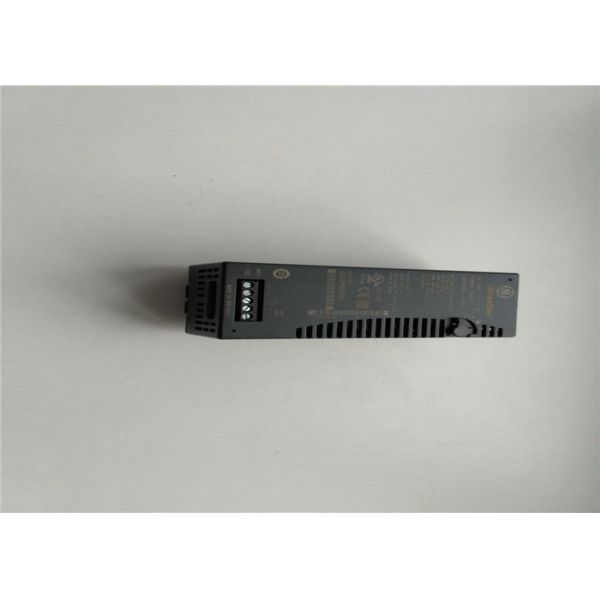

Redundant Power Supply Module GE Fanuc IC200PWR002 VersaMax Micro
PLUS Controller
Specifications
Input Voltage 18 to 30 VDC, 24VDC nominal
Input Power 11W
Holdup Time 10ms
Inrush Current 20A at 24VDC
25A at 30 VDC
Output Voltage 5VDC, 3.3VDC
Protection Short circuit, overload, reverse polarity
Output CurrentTotal
3.3VDC Output
5VDC Output
1.5A maximumz
1.0A maximum
(1.5A - I3.3V ) maximum
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| Fanuc motor A0- | Yokogawa transmitter EJA- |
Contact person: Anna
E-mail: wisdomlongkeji@163.com
Cellphone: +0086-13534205279
Similar Products
IC3600AVRA1 REFERENCE BOARD
IC3600AVSA1 VOL REL BOARD
IC3600AVSB1 REFER TO ARGO/HOUSTON
IC3600AVSD1 VOL REL BD
IC3600CCCA1 ACCT. RECTIFIER
IC3600DAEA1 IC3600DAEA
IC3600DBMA1 CIRCUIT BOARD ASM
IC3600DCDA1 IC3600DCDA
IC3600DCWA1 CARD-DELAY-&-CROWBAR
IC3600DCWB1 CARD-CROWBAR
IC3600DCWC1 IC3600DCWC
IC3600DEXB1 EXTENSION CARD
IC3600DGRA1 IC3600DGRA
IC3600DIGA1 IC3600DIGA
IC3600DIVA1 CARD-PART OF ICR607D104A
IC3600DJBB1 IC3600DJBB
IC3600DLIG1 DIO INTERFACE IC3600DLIG
IC3600DLIJ1 DLC AIR INTERFACE IC3600DLIJ
IC3600DLIK1 SPEEDTRONIC INTFC IC3600DLIK
IC3600DLIL1 DIO INTERFACE IC3600DLIL
IC3600DLPC1 DATA LINE PULL UP
IC3600DPSA1 CRD-15V-POWER-SUPPLY
IC3600DPSB1 CRD-15V-POWER-SUPPLY
IC3600DRDC8 CARD-RELAY-DRIVER
IC3600DRGA1 SPEEDTRONIC
IC3600DRGB1 CARD-PART OF ICR607D104A
IC3600DSPB1 CARD-PART OF 68B9453211
IC3600EPSA1 REGULATOR IC3600EPSA
IC3600EPSAB1
IC3600EPSB1 100V REGULATOR IC3600EPSB
IC3600EPSC1 INVTR. DR. IC3600EPSC
IC3600EPSD1 28V PS. IC3600EPSD
IC3600EPSE1 INDICATOR
IC3600EPSE2 INDICATOR CARD IC3600EPSE
IC3600EPSH1 POWER SUPPLY BD IC3600EPSH
IC3600EPSK1 MODULE
IC3600EPSM1 CB-75W-PWR-SUPPLY-CO
IC3600EPSN1 12V,28V POWER SUPPLY
IC3600EPSN3 POWER SUPPLY BD
IC3600EPSN4 CRD-15V-POWER-SUPPLY
IC3600EPSS1 50VTO-12V REGULATOR IC3600EPSS
IC3600EPSU1 MODULE
IC3600EPSV1 POWER SUPPLY IC3600EPSV
IC3600EPSW1 REGULATOR BOARD IC3600EPSW
24VDC Expanded 3.3V Power Supply IC200PWR002 provides backplane
power for CPU, NIU, and I/O modules. It supplies up to 1.5 Amps
output current via 3.3 volt and 5 volt outputs, with up to 1.0 Amp
on the 3.3 Volt output. Module backplane current consumption is
summarized in appendix C.
When mounted on the CPU or NIU module, it serves as the main power
supply for the station. It can also be used as a supplemental power
supply when mounted on a Power Supply Booster Carrier. Refer to the
Power Supply Booster Carrier section of chapter 4 for more
information.
DC- must be grounded to frame / earth ground. DC- is grounded to
frame internally in the
Power Supply. As a result, floating power supplies cannot be used.
The VersaMax IC200PWR002 is an expanded power supply unit (PSU)
produced by General Electric Fanuc. This module’s job is to supply
power to the following types of backplane devices: CPUs, NIUs, I/O
modules, and more. When connected to the central processing unit or
network interface unit, this power supply module acts as main
power, but it can also be mounted to a booster carrier and act as
supplementary power.
The IC200PWR002 uses direct current for its input and output
voltage. For this device, the input voltage can vary between 18
volts and 30 volts DC. The nominal input voltage is 24 volts DC.
The input power for this power unit is 11 watts, and the inrush
current is rated at 20 and 25 amperes at 24 and 30 volts DC,
respectively. Hold up time for this module is measured at
approximately 10 milliseconds.
Output voltage for the IC200PWR002 is both 3.3 and 5 volts DC, and
the output current is determined by the combination of both the 3.3
and 5-volt output voltage; however, output current shouldn’t go
beyond 1.5 amperes.
The IC200PWR002 has options for protection against short circuits,
overloads, and reverse polarity. When field wiring this power unit,
ensure that the DC- is grounded to the frame ground and earth
ground. Note: The DC- is grounded to the frame from within the
power supply unit itself. As a result, a floating power supply
configuration is not possible.
