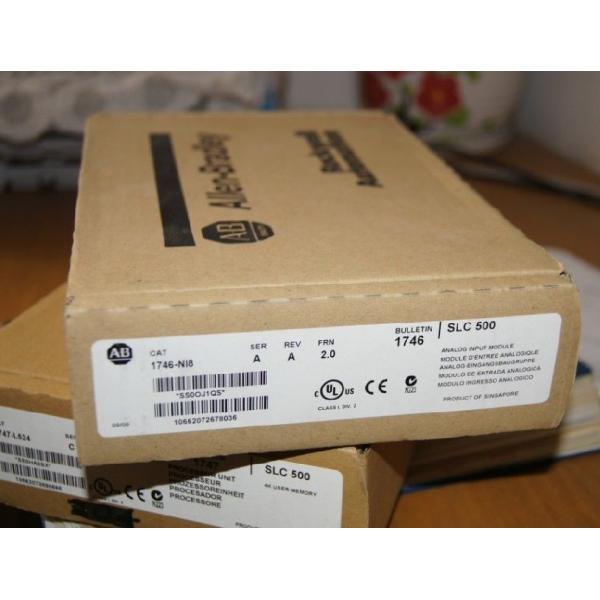

Digital I O Module Allen Bradley Analog Input 1746-NI8 For
Programmable Controller
1746 SLC I/O Modules
1746 SLC™ I/O Modules are part of our SLC 500 control platform.
General Input Specifications for 1746-NI8
| Specification | 1746-NI8 |
| Backplane current (mA) @ 5V | 200 mA |
| Backplane current (mA) @ 24V | 100 mA |
| Backplane power consumption | 3.4 W maximum (1.0 W @ 5V DC, 2.4 W @ 24V DC) |
| Number of inputs | 8 |
| Converter resolution | 16-bit |
| Type of input (selectable) | ±10V DC 0…5V DC 0…20 mA ±20 mA 1…5V DC 0…10V DC 4…20 mA 0…1 mA |
| Type of data (selectable) | Engineering Units Scaled for PID Proportional Counts (-32,768…32,767 range) Proportional Counts (User-Defined Range, Class 3 only) 1746-NI4 Data Format |
| A/D conversion method | Successive approximation, switched capacitor |
| Input filter frequencies | 1 Hz 2 Hz 5 Hz 10 Hz 20 Hz 50 Hz 75 Hz |
| Time to detect open circuit | 1 module scan |
| Common mode voltage range | ±10.5V (15V maximum between any two input signal terminals when
connected in a single-ended configuration) |
| Isolation voltage | Tested @ 500V AC and 710V DC for 60 s |
| Module update time | 0.75 ms per enabled channel |
| Channel turn-on time, max | 101…107 ms |
| Channel turn-off time, max | 1…7 ms |
| Channel reconsideration time, max | 101…107 ms |
| Calibration | Module performs continuous autocalibration |
Current Loop Specifications for 1746-NI8
| Attribute | Value |
| Current input, max | ±30 mA |
| Input impedance | 250 Ω |
| Input resolution | 1 μA |
| Display resolution | 1 μA |
| Overall module accuracy 0…60 °C (32…140 °F) | 0…20 mA, 4…20 mA, ±20 mA: ±0.05% 0…1 mA: ±0.5% |
| Overall module accuracy drift | ±12 ppm/°C |
| Gain error @ 25 °C (77 °F) | ±0.025%, max |
| Gain error, 0…60 °C (32…140 °F) | ±0.05%, max |
| Gain error drift | ±12 ppm/°C |
| Overvoltage capability | 7.5V AC RMS, max |
Voltage Input Specifications for 1746-NI8
| Attribute | Value |
| Voltage input, max | ±30V between any two signal terminals |
| Input impedance | 1M Ω |
| Input resolution | 1 mV |
| Display resolution | 1 mV |
| Overall module accuracy 0…60 °C (32…140 °F) | ±0.1% |
| Overall module accuracy drift | ±17 ppm/°C |
| Gain Error @ 25 °C (77 °F), max | ±0.05% |
| Gain Error, 0…60 °C (32…140 °F), max | ±0.1% |
| Gain error drift, max | ±17 ppm/°C |
1746 Digital I/O modules
Digital I/O modules are available with 4, 8, 16, or 32 channels and
in a wide variety of I/O voltages (including AC, DC, and TTL).
Combination modules with 2 inputs/2 outputs, 4 inputs/4 outputs,
and 6 inputs/6 outputs are also available.
Terminals on the 4, 8, 12, and 16-channel modules have self-lifting
pressure plates that accept two 14 AWG (2 mm2) wires. LED
indicators on the front of each module display the status of each
I/O point.
32-channel I/O modules are equipped with a 40-pin, MIL-C-83503 type
header and a removable wiring connector (1746-N3). The connector
can be assembled with the wire type and length of your choice.
Output modules are available with solid-state AC, solid-state DC,
and relay contact type outputs. High current solid-state output
modules, catalog numbers 1746-OBP16, 1746- OVP16, and 1746-OAP12,
have fused commons with a blown fuse LED indication. The
1746-OB16E, 1746-OB6EI, and 1746-OB32E modules provide electronic
protection from short circuit and overload conditions.
Wiring of 16 and 32-channel modules can also be accomplished with a
bulletin 1492 interface module and pre-wired cable. All 16-channel
I/O modules and catalog numbers 1746-OX8, 1746-OBP8, 1746-OAP12,
1746-IO12 are equipped with color-coded removable terminal blocks.
SLC 500 Common Specifications
Environmental Specifications
| Attribute | Value |
| Temperature, operating | IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0…60 °C (32…140
°F) |
| Temperature, nonoperating | IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock):
-40…85 °C (-40…185 °F) |
| Relative humidity | IEC 60068-2-30 (Test Db, Unpackaged Damp Heat): 5…95% without
condensation |
Environmental Specifications
| Attribute | Value |
| Vibration, operating | IEC 60068-2-6 (Test Fc, Operating): 1 g @ 5…2000 Hz |
| Vibration, nonoperating | 2.5 g @ 5…2000 Hz |
| Shock, operating | 30 g (3 pulses, 11 ms) – for all modules except relay contact 10 g (3 pulses, 11 ms) – for relay contact modules 1746-OWx and
1746-IOx combo |
| Shock, nonoperating | 50 g, 3 pulses, 11 ms |
| Free fall (drop test) | Portable, 2.268 kg (5 lb) or less @ 0.762 m (30 in.), six drops Portable, 2.268 kg (5 lb) or less @ 0.1016 m (4 in.), three flat
drops |
| Isolation voltage | Korean Registration of Broadcasting and Communications Equipment, compliant with: Article 58-2 of Radio Waves Act, Clause 3 |
Certifications
| Certifications when product is marked | Value |
| UL | UL Listed for Class I, Division 2 Group A,B,C,D Hazardous
Locations. See UL File E10314. |
| c-UL | UL Listed for Class I, Division 2 Group A,B,C,D Hazardous
Locations, certified for Canada. See UL File E10314. |
| CE | European Union 2004/108/EC EMC Directive, compliant with: EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)
European Union 2006/95/EC LVD, compliant with: EN 61131-2; Programmable Controllers (Clause 11) |
| C-Tick | Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions |
| KC | Korean Registration of Broadcasting and Communications Equipment,
compliant with: Article 58-2 of Radio Waves Act, Clause 3 |
Digital I/O Module Overview
| Catalog Number | Description | Voltage Category |
| 1746-NI4 | High Resolution (4) Analog Input Module | -20…+20 mA (or) -10…+10V DC |
| 1746-NI8 | High Resolution (8) Analog Input Module | -20…+20 mA (or) -10…+10V DC |
| 1746-NI16I | High Resolution (16) Analog Input Module | -20…+20 mA |
| 1746-NI16V | High Resolution (16) Analog Input Module | -10…+10V DC |
| 1746-NIO4I | High Resolution (2) Analog Input, (2) Analog Current Output Module | -20…+20 mA (or) -10…+10V DC (inputs) 0…20 mA (outputs) |
| 1746-NIO4V | High Resolution (2) Analog Input, (2) Analog Voltage Output Module | 20…+20 mA (or) -10…+10V DC (inputs) -10…+10V DC (outputs) |
| 1746-FIO4I | (2) Fast Analog Input, (2) Analog Current Output Module | 0…20 mA (or) 0…10V DC (inputs) 0…20 mA (outputs) |
| 1746-FIO4V | (2) Fast Analog Input, (2) Analog Voltage Output Module | 0…20 mA |
| 1746-NIO4I | (4) Analog Current Output Module | -10…+10V DC |
| 1746-NIO4V | (4) Analog Voltage Output Module | 0…20 mA |
| 1746-NO8I | (8) Analog Current Output Module | -10…+10V DC |
| 1746-NO8V | (8) Analog Voltage Output Module | -10…+10V DC |
| Catalog Number | Voltage Category | I/O Points | Description |
| DC Modules |
| 1746-IB8 | 24V DC | 8 | Current Sinking DC Input Module |
| 1746-IB16 | 24V DC | 16 | Current Sinking DC Input Module |
| 1746-IB32 | 24V DC | 32 | Current Sinking DC Input Module |
| 1746-ITB16 | 24V DC | 16 | Fast Response DC Sinking Input Module |
| 1746-IC16 | 48V DC | 16 | Current Sinking DC Input Module |
| 1746-IH16 | 125V DC | 16 | Current Sinking DC Input Module |
| 1746-IV8 | 24V DC | 8 | Current Sourcing DC Input Module |
| 1746-IV16 | 24V DC | 16 | Current Sourcing DC Input Module |
| 1746-IV32 | 24V DC | 32 | Current Sourcing DC Input Module |
| 1746-ITV16 | 24V DC | 16 | Fast Response DC Sourcing Input Module |
| 1746-IG16 | 5V DC | 16 | Current Sourcing TTL Input Module |
| 1746-OB6EI | 24V DC | 6 | Electronically Protected Isolated Sourcing DC Output Module |
| 1746-OB8 | 24V DC | 8 | Current Sourcing DC Output Module |
| 1746-OB16 | 24V DC | 16 | Current Sourcing DC Output Module |
| 1746-OB16E | 24V DC | 16 | Electronically Protected Current Sourcing DC Output Module |
| 1746-OB32 | 24V DC | 32 | Current Sourcing DC Output Module |
| 1746-OB32E | 24V DC | 32 | Electronically Protected Current Sourcing DC Output Module |
| 1746-OBP8 | 24V DC | 8 | High Current Sourcing DC Output Module |
| 1746-OBP16 | 24V DC | 16 | High Current Sourcing DC Output Module |
| 1746-OV8 | 24V DC | 8 | Current Sinking DC Output Module |
| 1746-OV16 | 24V DC | 16 | Current Sinking DC Output Module |
| 1746-OV32 | 24V DC | 32 | Current Sinking DC Output Module |
| 1746-OVP16 | 24V DC | 16 | High Current Sinking DC Output Module |
| 1746-OG16 | 5V DC | 16 | Current Sinking TTL Output Module |
Catalog Number
| Voltage Category | I/O Points | Description |
| AC Modules |
| 1746-IA4 | 100/120V AC | 4 | 120V AC Input Module |
| 1746-IA8 | 100/120V AC | 8 | 120V AC Input Module |
| 1746-IA16 | 100/120V AC | 16 | 120V AC Input Module |
| 1746-IM4 | 200/240V AC | 4 | 240V AC Input Module |
| 1746-IM8 | 200/240V AC | 8 | 240V AC Input Module |
| 1746-IM16 | 200/240V AC | 16 | 240V AC Input Module |
| 1746-OA8 | 100/120V AC | 8 | 120/240V AC Output Module |
| 1746-OA16 | 100/120V AC | 16 | 120/240V AC Output Module |
| 1746-OAP12 | 100/120V AC | 12 | High Current 120/240V AC Output Module |
| AC/DC Modules |
| 1746-IN16 | 24V AC/DC | 16 | 24V AC/DC Input Module |
| 1746-OW4 | AC/DC Relay | 4 | Relay (Hard Contact) Output Module |
| 1746-OW8 | AC/DC Relay | 8 | Relay (Hard Contact) Output Module |
| 1746-OW16 | AC/DC Relay | 16 | Relay (Hard Contact) Output Module |
| 1746-OX8 | AC/DC Relay | 8 | Relay (Hard Contact) Output Module |
| 1746-IO4 | 120V ac (Inputs) 100/120V AC (Relay Contact Outputs) | 2 In 2 Out | Combination Input/Output Module |
| 1746-IO8 | 120V AC (Inputs) 100/120V AC (Relay Contact Outputs) |
| Combination Input/Output Module |
| 1746-IO12 | 120V AC (Inputs) 100/120V AC (Relay Contact Outputs) | 4 In 4 Out | Combination Input/Output Module |
| 1746-IO12DC | 24V DC (Inputs) 100/120V AC (Relay Contact Outputs) | 6 In 6 Out | Combination Input/Output Module |
